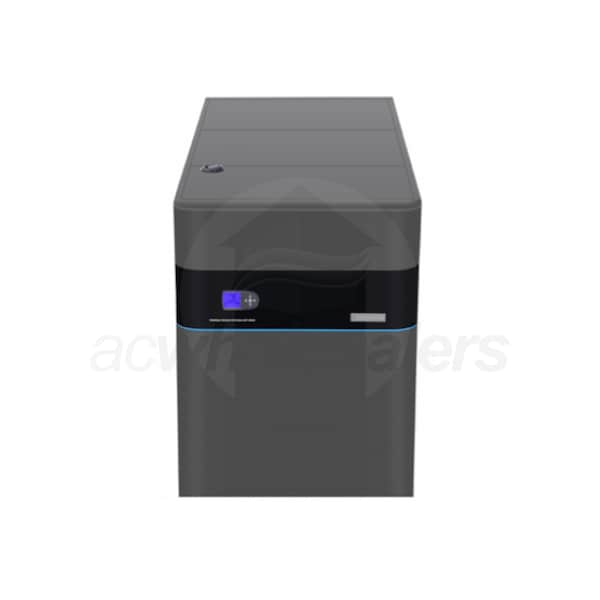

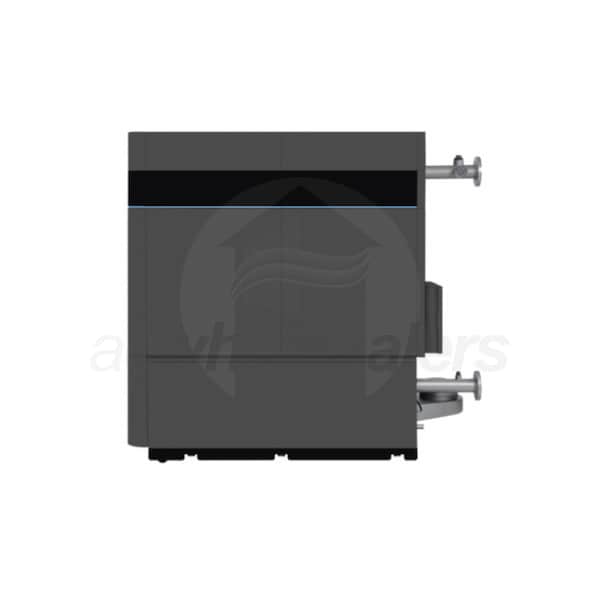

Weil-McLain SVF 1500 - 1,440K BTU - 96% Thermal Efficiency - Hot Water Gas Boiler - Direct Vent

Model: 384000023 Item Number: 102996
Weil-McLain 384000023
PREVIOUS
NEXT
Weil-McLain 384000023
Weil-McLain 384000023
Weil-McLain 384000023
Enlarge Image
Weil-McLain 384000023
Weil-McLain 384000023
Weil-McLain 384000023
View All
Our Price: $37,776.00
synchrony card icon
$473 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Factory-Direct
Ships in 4-6 Weeks
Weil-McLain SVF 1500 - 1,440K BTU - 96% Thermal Efficiency - Hot Water Gas Boiler - Direct Vent
Weil-McLain SVF 1500 - 1,440K BTU - 96% Thermal Efficiency - Hot Water Gas Boiler - Direct Vent Model: 384000023 Item Number: 102996
$37,776.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Boiler
DOE Heating Capacity (BTU/Hr)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Weil-McLain 384000023

Over the last 130 years, Weil-McLain has built a reputation of designing some of the most reliable boilers in the marketplace. Their dedication to producing long-lasting heating solutions is seen in every boiler they make. The SVF boiler is a testament to Weil-McLain's dedication. Designed with corrosion resistant and durable materials, the Weil-McLain SVF boilers deliver energy efficiency and reliability. With streamlined set-up and installation, you will save time, labor and money.
  • Nuro Control
  • Featuring the color touchscreen Nuro Control, the SVF Series provides advanced set-up, diagnostics as well as trouble shooting.
  • Exclusive Design
  • The clover-shaped, firetube design provides greater surface area to maximize heat transfer, resulting in industry-leading thermal efficiencies.
  • Streamlined Installation
  • With it's heavy-duty roller casters, you can easily manuever the boiler for installation. The low-profile burner design reduces required work space to 18 inches.
  • Easy Maintenance
  • Perform maintenance and service easily with the SVF series. The hinged cover allows for easy access to the burner and firetubes. The single-point service location make service calls a breeze for a trained Weil-McLain technician.
  • Door-Fit Design
  • Easily fitting through a 36" standard-size door, the contractor-friendly SVF series saves time, money and labor with it's door-fit design.
  • Long Lasting
  • Made from industrial-grade steel, the frame and jacket panels on the SVF series are built to last. The heat exchanger and shell are made from 316L stainless, creating reliable and long lasting performance.
  • Product Note
    This product is too large to be delivered with Lift Gate Service. You must have a forklift or loading dock at the delivery location to unload the product.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler
    General Information
    Product Line
    SVF
    Product Category
    Boiler
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Condensing
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    DHW Production Learn More
    DHW Production
    DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
    No
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Modulating
    Mount Type
    Floor
    Assembly Type
    Packaged
    Gas Conversion Kit
    Included
    Performance
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    1500000 BTU
    DOE Heating Capacity Learn More
    DOE Heating Capacity
    Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
    1440000 BTU
    Net I=B=R Capacity Learn More
    Net I=B=R Capacity
    I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
    1252000 BTU
    Efficiency Type
    Thermal Efficiency
    Efficiency
    96 %
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    No
    Low NOx Emissions Learn More
    Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
    Yes
    Turndown Ratio
    7.5:1
    Electrical Data
    Voltage
    120 Volts
    Phase
    2
    Dimensions
    Flue Connection Size
    8 Inches
    Gas Connection Size
    2 Inches
    Boiler Supply
    3 Inches
    Product Height
    79 7/24 Inches
    Product Width
    35 5/24 Inches
    Product Depth
    84 5/48 Inches
    Shipping Weight
    2445 Pounds
    Certifications
    CSA Listed
    Yes
    Energy Star Listed
    Yes
    ASME Certified
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    212428714
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
    Heat Exchanger Warranty
    10 Years
