Weil-McLain P-WGO-3 115,000 BTU 85.3% AFUE Hot Water Oil Boiler

Model: P-WGO-3 Item Number: 50003

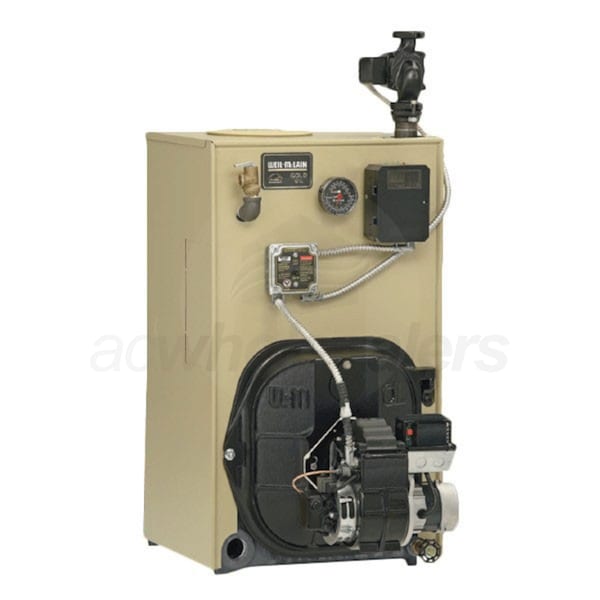

Weil-McLain P-WGO-3
PREVIOUS
NEXT
Weil-McLain P-WGO-3
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    595 Pounds Learn More
    595 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Line
    WGO
    Medium
    Hot Water
Recommended Accessories
View More
Installation Accessories
Caleffi  Auto Fill Combo Automatic Boiler Fill Valve with Backflow Preventer, 1/2" FNPT Inlet x 1/2" FNPT Outlet
Model: 573002A
Inlet Type
Qty
$159.00
Only 2 In-Stock
Add To Cart
Weil-McLain Aqua Plus 45 - 45 Gallon Capacity- Residential Indirect Water Heater
Model: 633600001
Tank Size
Qty
$1,733.00
In-Stock
Add To Cart
Amtrol Extrol - 7.6 Gallon - In-Line Boiler System Expansion Tank
Model: EX-60
Qty
$125.89
In-Stock
Add To Cart
Caleffi Discal - Air Separator with 1/2" Check Valve - 1-1/4" NPT Female Connections
Model: 551007AC
Qty
$164.70
Only 2 In-Stock
Add To Cart
Hydrolevel Safgard 170 Heavy Duty Hot Water Boiler Low Water Cut-Off, 120 VAC, EL1214-SV  3/4" NPT Probe
Model: 170SV
Qty
$138.00
Ships in 4-7 Business Days
Add To Cart
Hydrolevel Safgard 1150 Low Water Cut-Off with Wire Harness, 120 VAC
Model: 1150
Qty
$128.00
Ships in 4-7 Business Days
Add To Cart
Hydrolevel Safgard 550 Commercial Hot Water Boiler Low Water Cut-Off, 120 VAC, EL1214-P 3/4" NPT Probe
Model: 550P
Qty
$250.00
Ships in 4-7 Business Days
Add To Cart
Tekmar 256 - Boiler Control - Outdoor Temp. Reset - One Stage
Model: 256
Qty
$227.00
Ships in 2-5 Business Days
Add To Cart
Tekmar 518 - Thermostat - Non-Programmable - One Stage Heat
Model: 518
Qty
$101.00
Ships in 4-7 Business Days
Add To Cart
Weil-McLain Oil Burner for GO-2, GO-3, GO-4, and GO-5 - Riello F5 - 1.65 GPH - Chimney Vent
Model: 521107520
Qty
$713.00
Only 1 In-Stock
Add To Cart
Weil-McLain Oil Burner for GO-3 - Beckett AFG - 0.95 GPH - Chimney Vent
Model: 386700396
Qty
$646.00
Ships in 3-4 Weeks
Add To Cart
Weil-McLain Oil Burner for GO-3 - Beckett AFG - 0.95 GPH - Chimney Vent - With 2-Stage Pump
Model: 521100013
Qty
$742.00
Only 1 In-Stock
Add To Cart
Weil-McLain Oil Burner for GO-3 - EZ-1 - 0.95 GPH - Chimney Vent
Model: 386700428
Qty
$644.00
Only 1 In-Stock
Add To Cart
tekmar  521 - Thermostat - Programmable - 2H or 1H/1C - Buttons
Model: 521
Qty
$159.00
Ships in 2-5 Business Days
Add To Cart
Caleffi Discal Air Separator with 1/2" FNPT Bottom Thread - 1-1/4" NPT Female Connections
Model: 551007A
Connection Type
Qty
$161.82
Only 4 In-Stock
Add To Cart
Features
View More

Features

Overview for Weil-McLain P-WGO-3

Overview for Weil-McLain 386700828Over the last 130 years, Weil-McLain has built a reputation of designing some of the most reliable boilers in the marketplace. Their dedication to producing lasting heating solutions is seen in every boiler they make. The WGO is a flexible, durable, oil-fired heating solution for hot water systems. Efficient energy use is a high point of the WGO's design, allowing you to make the most of your energy dollar. Weil-McLain knows the value of longevity, so they used cast-iron for WGO boiler sections. Between the high efficiency, durable construction, and flexibility, the WGO excels both as a replacement boiler and as an addition to new construction.
Product Features
Simple to ServiceInspecting and maintaining a WGO is incredibly simple. Between the swing-away burner door and the quick-open top panel, the WGO is always accessible. Weil-McLain uses a recessed target wall design to protect the unit from flue brushes during cleaning.Captured SealsSilicone-coated fiber ropes are used for sealing the boiler sections. These seals expand and contract with the boiler, keeping the unit watertight and preventing contaminants from entering your system.Venting FlexibilityWGO boilers have two vent connections, one on the rear and one on the top. By providing an alternate venting set up, Weil-McLain has ensured that the WGO is suited for a variety of installation conditions.Efficiency-Boosting InsulationHeat retention is critical to energy efficiency. Heat leakage represents energy use without any comfort gains. An extended, insulated steel jacket prevents heat from escaping the WGO and improves the efficiency.
Product Includes
  • (1) Weil-McLain P-WGO-3 Hot Water Boiler
  • (1) Draft Damper
  • (1) Taco 007 Circulator
Product Note
This boiler does not include an oil burner. Please see the Accessories tab for compatible burners if you require one.
  • Simple to Service
  • Inspecting and maintaining a WGO is incredibly simple. Between the swing-away burner door and the quick-open top panel, the WGO is always accessible. Weil-McLain uses a recessed target wall design to protect the unit from flue brushes during cleaning.
  • Captured Seals
  • Silicone-coated fiber ropes are used for sealing the boiler sections. These seals expand and contract with the boiler, keeping the unit watertight and preventing contaminants from entering your system.
  • Venting Flexibility
  • WGO boilers have two vent connections, one on the rear and one on the top. By providing an alternate venting set up, Weil-McLain has ensured that the WGO is suited for a variety of installation conditions.
  • Efficiency-Boosting Insulation
  • Heat retention is critical to energy efficiency. Heat leakage represents energy use without any comfort gains. An extended, insulated steel jacket prevents heat from escaping the WGO and improves the efficiency.
  • Product Note
    This boiler does not include an oil burner. Please see the Accessories tab for compatible burners if you require one.
    Specifications
    View More

    Specifications

    General Information
    Product Line
    WGO
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Heat Exchanger Material
    Cast Iron
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Oil
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Conventional
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Chimney Vent
    DHW Production Learn More
    DHW Production
    DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
    No
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Single Stage
    Mount Type
    Floor
    Maximum Altitude
    2000 Feet
    Assembly Type
    Packaged
    Includes Pump
    Yes
    Burner Model
    Sold Separately
    UPC
    0672619140097
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    85 %
    Input Rate
    0.95 GPH
    DOE Heating Capacity Learn More
    DOE Heating Capacity
    Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
    115000 BTU
    Net I=B=R Capacity Learn More
    Net I=B=R Capacity
    I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
    100000 BTU
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    6 Inches
    Supply Connection
    1 1/4 Inches
    Return Connection
    1 1/2 Inches
    Product Height
    35 5/8 Inches
    Product Width
    20 1/4 Inches
    Product Depth
    16 7/8 Inches
    Product Weight
    595 Pounds
    Shipping Height
    39 Inches
    Shipping Width
    23 Inches
    Shipping Depth
    27 Inches
    Shipping Weight
    605 Pounds
    Certifications
    Country of Origin
    United States
    CSA Listed
    Yes
    Energy Star Listed
    Yes
    ASME Certified
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    2101541
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
    Heat Exchanger Warranty
    20 Years
