Weil-McLain EVG 399 - 383K BTU - 96.5% AFUE - Hot Water Gas Boiler - Direct Vent

Model: 383900002 Item Number: 58493
Weil-McLain 383900002
PREVIOUS
NEXT
Weil-McLain 383900002
Weil-McLain 383900002
Weil-McLain 383900002
Enlarge Image
Weil-McLain 383900002
Weil-McLain 383900002
Weil-McLain 383900002
View All
Our Price: $10,546.00
synchrony card icon
$132 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
In-Stock
Ships Thursday, December 5th
Shipping to60601
Weil-McLain EVG 399 - 383K BTU - 96.5% AFUE - Hot Water Gas Boiler - Direct Vent
Weil-McLain EVG 399 - 383K BTU - 96.5% AFUE - Hot Water Gas Boiler - Direct Vent Model: 383900002 Item Number: 58493
$10,546.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    255 Pounds Learn More
    255 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler
    UPC
    0672619203556
DOE Heating Capacity (BTU/Hr)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Weil-McLain 383900002

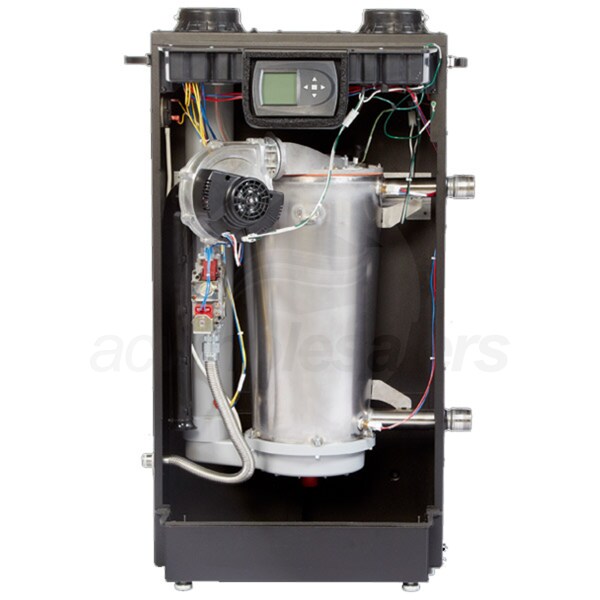

Using its modulating burner to scale fuel use and condensing technology to reuse heat that traditional boilers lose, the Weil-McLain EVG 399 is rated as one of the most efficient boilers on the market. With multiple features making the EVG 399 easy to install and maintain, the Evergreen line has made home boilers easier to use than ever. The flexibility of the Evergreen line is unmatched, as up to eight units can be connected and controlled simultaneously. With the ability to be wall or floor mounted, the Evergreen series boilers can fit in almost any application.
  • Durable Design
  • Using their stainless steel heat exchanger technology and non-metallic condensate base, Weil-McLain has designed one of the most durable boilers available. Built in diagnostic tests will ensure your unit is running at peak efficiency at all times.
  • Simple Efficiency
  • With a 95% AFUE efficiency rating, the Evergreen series is one of the most efficient boiler lines on the market. Not only will this keep utility bills lower, but it will help to reduce carbon footprint as well.
  • Easy Heat, Effortless Comfort
  • The Evergreen boilers are easy to install and even easier to maintain. With an optional wall kit (sold separately), they will fit in nearly any space.

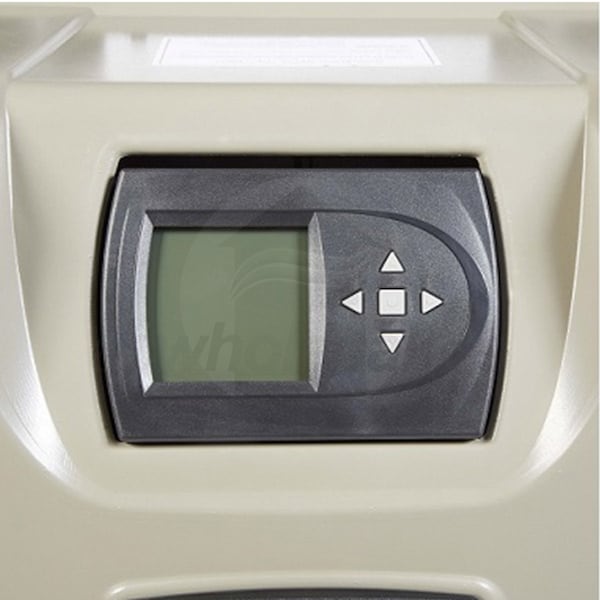

  • Innovative Control
  • Evergreen boilers come with an easy-to-use control that features a Setup Wizard, zone and/or priority control, and integrated low water protection. Interactive diagnostic capabilities makes it easy to monitor controls for years of reliable operation.
  • Product Includes
  • (1) Weil-McLain EVG 399 Hot Water Boiler
  • (1) Taco 0013 Circulator
  • (1) Low Water Cut-Off
  • Product Note
    Product may come in color shown or in the "putty" color.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler
    UPC
    0672619203556
    General Information
    Product Line
    Evergreen
    Product Category
    Boiler
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Condensing
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    DHW Production Learn More
    DHW Production
    DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
    No
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Modulating
    Mount Type
    Floor/Wall
    Minimum Altitude
    0 Feet
    Maximum Altitude
    11000 Feet
    Includes Pump
    Yes
    Assembly Type
    Packaged
    Gas Conversion Kit
    Available
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    96 %
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    399000 BTU
    Minimum Input Capacity
    39900 BTU
    DOE Heating Capacity Learn More
    DOE Heating Capacity
    Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
    383000 BTU
    Net I=B=R Capacity Learn More
    Net I=B=R Capacity
    I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
    333000 BTU
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    Yes
    Turndown Ratio
    10:1
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/4 Inch
    Flue Connection Size
    4 Inches
    Supply Connection
    1 1/2 Inches
    Return Connection
    1 1/2 Inches
    Product Height
    45 Inches
    Product Width
    25 5/24 Inches
    Product Depth
    22 3/4 Inches
    Product Weight
    255 Pounds
    Shipping Weight
    260 Pounds
    Certifications
    Energy Star Listed
    Yes
    CSA Listed
    Yes
    ASME Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
    Heat Exchanger Warranty
    10 Years
