Williams - 60K BTU - Gas Floor Furnace - 58% AFUE

Model: 6005622A Item Number: 71168
Williams 6005622A
PREVIOUS
NEXT
Williams 6005622A
Williams 6005622A
Enlarge Image
Williams 6005622A
Williams 6005622A
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    164 Pounds Learn More
    164 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Furnace
    UPC
    0093909299255
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Williams 6005622A

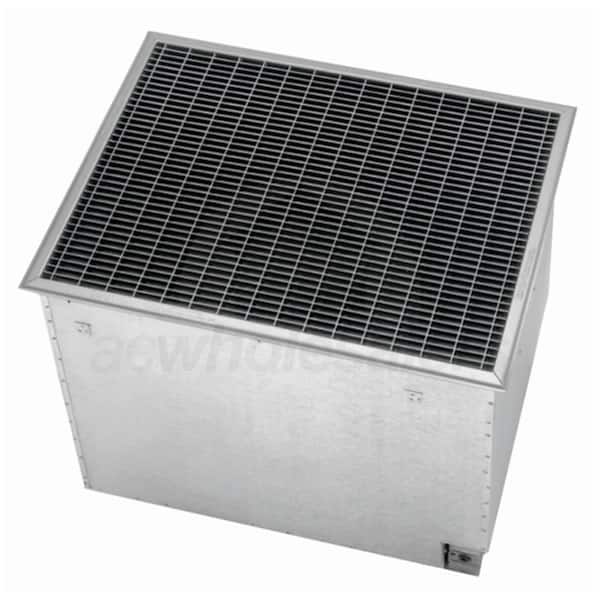

The Williams floor furnace takes up no above-the-floor space and effectively circulates warm air without the aid of a blower. The floor furnaces are fitted with an automatic floor register grille temperature control and a nonelectric pilot to make sure you have continuous heat even during power outages. Williams floor furnaces circulate heat through natural convection and are the perfect choice for homes with limited space.
  • No Electricity Needed
  • During power outages, you have a lot to worry about, but your furnace won't be an issue. The floor furnace requires no electricity for operation.
  • Safe Pilot Ignition
  • With matchless pilot ignition, the guess work is taken out of lighting the furnace. By sealing the pilot and igniter away from dirt and debris, the electronic igniter lights the furnace safely and reliably.
  • Vent Limit Safety Switch
  • The vent limit safety switch is equipped on all floor furnaces. This turns off the unit in case the vent is blocked, protecting your family from carbon monoxide and fires.
  • Easy Servicing
  • The Williams floor furnaces have a removable combustion chamber that lifts out for easy servicing.
  • Product Note

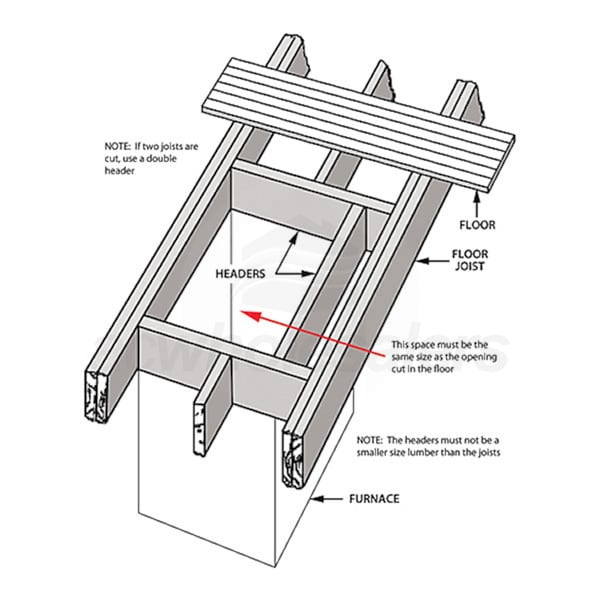

    The Williams floor furnace is designed as a replacement for your existing floor furnace. A thermostat does not come included with this unit and is required. The Williams P322016 thermostat is compatible and can be found under the "Accessories" tab. Alternatively, any standard millivolt thermostat can be used.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Furnace
    UPC
    0093909299255
    General Information
    Type
    Gas Floor Furnace
    Product Category
    Furnace
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Chimney Vent
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Single Stage
    Mount Type
    Floor
    Gas Conversion Kit
    Available
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    58 %
    Heating BTU
    60000
    High Fire Input
    60000 BTU
    High Fire Output
    42000 BTU
    Dimensions
    Flue Connection Size
    4 Inches
    Product Height
    28 1/2 Inches
    Product Width
    24 Inches
    Product Depth
    42 Inches
    Product Weight
    164 Pounds
    Shipping Weight
    174 Pounds
    Certifications
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
    Heat Exchanger Warranty
    10 Years
