Williams - 30k BTU - Gas Top Vent - Wall Furnace - LP - 82% AFUE - Single Sided

Model: AC2030TP Item Number: 124697

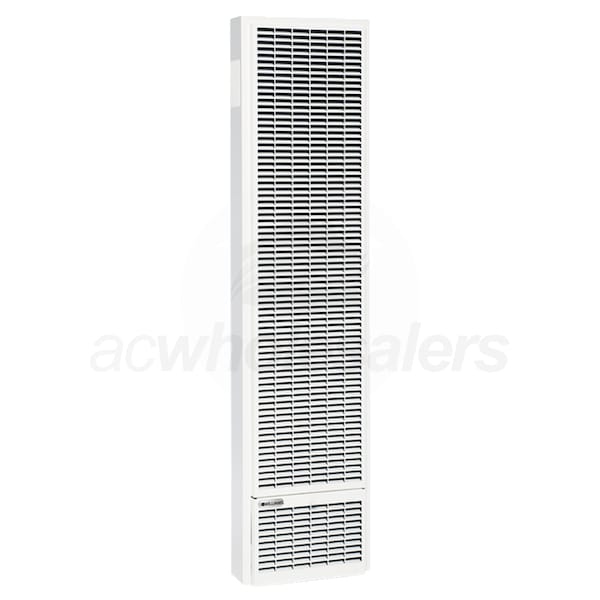

Williams AC2030TP
PREVIOUS
NEXT
Williams AC2030TP
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    106 Pounds Learn More
    106 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Gas Wall Furnace
    Product Category
    Furnace
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Williams AC2030TP

The AC2030TP top vent gas wall heater is the next generation high performance vented wall furnace heating solution. The AC2030TP offers traditional home comfort by lowering heating costs, adding convenience and high efficiency. Individual rooms can also be heated comfortably while saving on fuel costs in unused areas. The AC2030TP can be recessed or surface-mounted and are great in homes, schools, cabins, apartments, offices and shops.
  • Superior Comfort and Efficiency
  • Sustainable 82% AFUE ultra-low NOx emissions.
  • Dynamic Response
  • Energy savings and constant comfortable temperature or just enough heat for your desired environment.
  • No Standing Pilot
  • Eliminates seasonal relighting, saves energy and eliminates methane emissions.
  • Quiet Fans
  • Offer improved comfort and air circulation.
  • Reduced Carbon Footprint
  • Fits into the same opening and uses the same venting as the traditional Monterey wall furnace.
  • Programmable thermostat included for energy savings and comfort
  • Multiple Heating Schedule and Temperatures, BTU Output, Date and Time and Manual and Auto Modes.
  • Product Note
    A programmable thermostat is included with this unit. Product dimensions reflect measurement of furnace coming out from the wall.
    Specifications
    View More

    Specifications

    General Information
    Type
    Gas Wall Furnace
    Product Category
    Furnace
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Liquid Propane
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Top Vent
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Single Stage
    Gas Conversion Kit
    Available
    UPC
    093909005641
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    82 %
    Heating BTU
    30000
    High Fire Input
    30000 BTU
    High Fire Output
    25428 BTU
    Dimensions
    Gas Connection Size
    1/2 Inch
    Product Height
    65 3/4 Inches
    Product Width
    16 Inches
    Product Depth
    6 Inches
    Product Weight
    106 Pounds
    Shipping Weight
    120 Pounds
    Certifications
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
