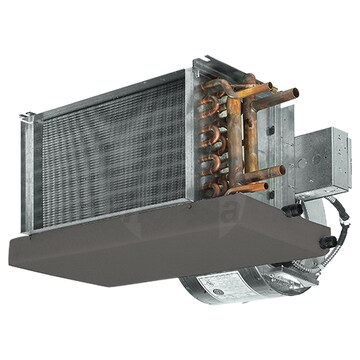

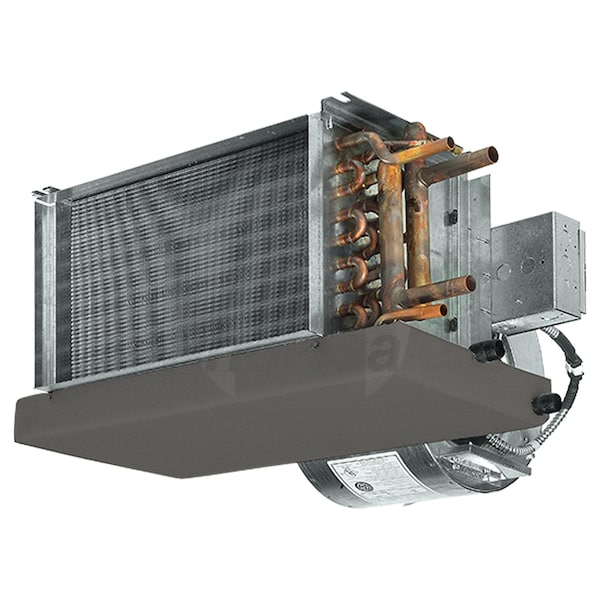

Williams - HH-B Series - 4.5 Ton - High Performance Horizontal Fan Coil - Four Pipe Hydronic - Right Hand - 120V/60Hz/1 Phase

Model: C018W4B411R000 Item Number: 153227
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Williams C018W4B411R000
PREVIOUS
NEXT
Williams C018W4B411R000
Enlarge Image
Originally $1,672.00, you save 5%
Our Price: $1,588.40
synchrony card icon
$265 / Month
Suggested monthly payments with 6 month financing.
Click for important monthly payment and offer information.
Factory-Direct
Ships in 8-12 Weeks
Williams - HH-B Series - 4.5 Ton - High Performance Horizontal Fan Coil - Four Pipe Hydronic - Right Hand - 120V/60Hz/1 Phase
Williams - HH-B Series - 4.5 Ton - High Performance Horizontal Fan Coil - Four Pipe Hydronic - Right Hand - 120V/60Hz/1 Phase Model: C018W4B411R000 Item Number: 153227
$1,588.40
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    253 Pounds Learn More
    253 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Fan Coil
    Product Line
    HH-B Series
View More
System (Type)
Select Attribute
Features
View More

Features

Overview for Williams C018W4B411R000

Williams, a leading HVAC solutions provider, has been delivering quality heating and cooling solutions since 1916. With a commitment to innovation and quality, Williams offers a wide range of products including gas-fired heating, gravity wall heating, and fan coils. Williams manufactures their products using state-of-the-art machinery and adhering to the highest safety standards. With a long-standing reputation for excellence Williams is dedicated to providing industry-leading products and exceptional customer service for both residential and commercial applications. The HH-B fan coil is a versatile option for various applications that require high static performance. Its slim design is perfect for hidden installations like drop ceilings and closets. It features a powder coated epoxy drain pan and a variety of coil, motor, and control options. The four-pipe hydronic system consists of a distribution system that features both hot water supply and return lines, as well as chilled water supply and return lines. These models do not have an external cabinet. This fan coil also offers a dedicated right hand connection to provide a larger space for valve packages and controls.
  • Quality Insulation and Materials
  • Features heavy gauge cold rolled steel cabinet with 3.35 PCF density 1/2" fiberglass insulation and 1/2" OD copper coils, tested at 350 PSIG high pressure.
  • Salt-Spray Tested Drain Pan
  • Galvanized drain pan with epoxy powder coating, subjected to a 650-hour salt spray test for corrosion resistance.
  • Efficient Motor
  • Equipped with a three-speed PSC motor with quick connect plug for trouble-free operation.
  • Reliable Filtration System
  • Equipped with a one-inch fiberglass, replaceable filter for clean air circulation.
  • Air Duct Openings
  • One inch reinforced duct collar on return and supply air openings.
  • Certified Performance
  • Units are ETL approved, AHRI certified, and 100% factory tested, ensuring quality and reliability.
    • Specifications
    View More

    Specifications

    General Information
    Type
    Fan Coil
    Product Line
    HH-B Series
    Product Category
    Hydronic Air Handler
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    UPC
    93909010126
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    4.5 Tons
    Nominal Minimum Cooling Capacity
    48437 BTU
    Nominal Maximum Cooling Capacity
    62619 BTU
    Maximum Air Flow
    2005 CFM
    Maximum Flow Rate
    12.5 GPM
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Cold Water Inlet
    3/4 Inch
    Hot Water Inlet
    3/4 Inch
    Product Height
    16 5/48 Inches
    Product Width
    49 1/2 Inches
    Product Depth
    28 1/3 Inches
    Product Weight
    253 Pounds
    Shipping Weight
    283 Pounds
    Certifications
    ETL Listed
    Yes
    UL Listed
    Yes
    AHRI Certified
    Yes
    ASTM Certified
    Yes
    NFPA Rated Learn More
    NFPA Rated
    The National Fire Protection Association has developed a system for indicating the health, flammability and reactivity hazards of some chemicals.
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    1 Year
