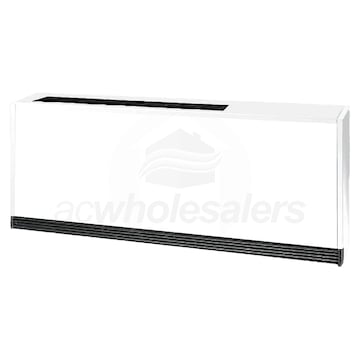

Williams - LV-M Series - 1 Ton Vertical Fan Coil - Direct Expansion / Hydronic Heat - Modular - Right Hand - 120V/60Hz/1 Phase

Model: L004DHM311R000 Item Number: 153246
Williams L004DHM311R000
PREVIOUS
NEXT
Williams L004DHM311R000
Enlarge Image
Originally $1,620.00, you save 5%
Our Price: $1,539.00
synchrony card icon
$257 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 8-12 Weeks
Williams - LV-M Series - 1 Ton Vertical Fan Coil - Direct Expansion / Hydronic Heat - Modular - Right Hand - 120V/60Hz/1 Phase
Williams - LV-M Series - 1 Ton Vertical Fan Coil - Direct Expansion / Hydronic Heat - Modular - Right Hand - 120V/60Hz/1 Phase Model: L004DHM311R000 Item Number: 153246
$1,539.00
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    205 Pounds Learn More
    205 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Fan Coil
    Product Line
    LV-M Series
Size (Tons)
Learn More
Size (Tons)
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
Select Attribute
System (Type)
Select Attribute
Features
View More

Features

Overview for Williams L004DHM311R000

Williams, a leading HVAC solutions provider, has been delivering quality heating and cooling solutions since 1916. With a commitment to innovation and quality, Williams offers a wide range of products including gas-fired heating, gravity wall heating, and fan coils. Williams manufactures their products using state-of-the-art machinery and adhering to the highest safety standards. With a long-standing reputation for excellence Williams is dedicated to providing industry-leading products and exceptional customer service for both residential and commercial applications. The LV-M vertical modular fan coil features a flat top cabinet with a vertical slope design. A removable front panel allows for easy access to all components for servicing, including the motor, coil, valve package, drain pan, and filter. The cabinet includes top discharge and front-return grilles. This fan coil uses a DX coil also known as direct expansion coil. It cools air by evaporating refrigerant. The liquid-vapor mixture enters the coil, cools the air, and leaves as a gas. This fan coil also offers a dedicated right hand connection to provide a larger space for valve packages and controls.
  • Quality Insulation and Materials
  • Features heavy gauge cold rolled steel cabinet with 3.35 PCF density 1/2" fiberglass insulation and 1/2" OD copper coils, tested at 350 PSIG high pressure.
  • High-Quality Coils
  • Coils made from copper tubing with aluminum fins and are pressure tested for durability.
  • Salt-Spray Tested Drain Pan
  • Galvanized drain pan with epoxy powder coating, subjected to a 650-hour salt spray test for corrosion resistance.
  • Versatile Motor
  • Three-speed motor with various voltage options and easy plug connection.
  • Convenient Installation
  • Factory-wired controls and motors, designed for easy single-point power supply connection.
  • Specifications
    View More

    Specifications

    General Information
    Type
    Fan Coil
    Product Line
    LV-M Series
    Product Category
    Hydronic Air Handler
    Refrigerant Type
    R410A
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Vertical
    UPC
    93909010461
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    1.0 Ton
    Nominal Minimum Cooling Capacity
    11973 BTU
    Nominal Maximum Cooling Capacity
    17924 BTU
    Maximum Air Flow
    391 CFM
    Maximum Flow Rate
    3.1 GPM
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Cold Water Inlet
    1/2 Inch
    Hot Water Inlet
    1/2 Inch
    Product Height
    26 Inches
    Product Width
    50 1/8 Inches
    Product Depth
    10 1/4 Inches
    Product Weight
    205 Pounds
    Shipping Weight
    253 Pounds
    Certifications
    ETL Listed
    Yes
    UL Listed
    Yes
    AHRI Certified
    Yes
    ASTM Certified
    Yes
    NFPA Rated Learn More
    NFPA Rated
    The National Fire Protection Association has developed a system for indicating the health, flammability and reactivity hazards of some chemicals.
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    1 Year
