Williamson 145K BTU 85.0% AFUE Hot Water Oil Boiler Chimney Vent

Model: OWT-4-T-S2-W-W Item Number: 31082
Williamson-Thermoflo OWT-4-T-S2-W-W
PREVIOUS
NEXT
Williamson-Thermoflo OWT-4-T-S2-W-W
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    660 Pounds Learn More
    660 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Line
    OWT
    Medium
    Hot Water
Recommended Accessories
View More
Installation Accessories
Caleffi  Auto Fill Combo Automatic Boiler Fill Valve with Backflow Preventer, 1/2" FNPT Inlet x 1/2" FNPT Outlet
Model: 573002A
Inlet Type
Qty
$159.00
Ships in 16-20 Weeks
Add To Cart
Weil-McLain Aqua Plus 45 - 45 Gallon Capacity- Residential Indirect Water Heater
Model: 633600001
Tank Size
Qty
$1,733.00
In-Stock
Add To Cart
Amtrol Extrol - 14 Gallon - In-Line Boiler System Expansion Tank
Model: EX-90
Qty
$225.00
In-Stock
Add To Cart
Caleffi Discal - Air Separator with 1/2" Check Valve - 1-1/4" NPT Female Connections
Model: 551007AC
Qty
$164.70
Ships in 16-20 Weeks
Add To Cart
Hydrolevel Safgard 170 Heavy Duty Hot Water Boiler Low Water Cut-Off, 120 VAC, EL1214-SV  3/4" NPT Probe
Model: 170SV
Qty
$138.00
Ships in 4-7 Business Days
Add To Cart
Triangle Tube Smart 120 - 119 Gallon - Residential Indirect Water Heater
Model: SMART 120
Qty
$2,799.00
Only 1 In-Stock
Add To Cart
Burnham AL35SL - 35 Gallon - Indirect Water Heater
Model: AL35SL
Tank Size
Qty
$1,826.00
In-Stock
Add To Cart
Hydrolevel Safgard 1150 Low Water Cut-Off with Wire Harness, 120 VAC
Model: 1150
Qty
$128.00
Ships in 4-7 Business Days
Add To Cart
Hydrolevel Safgard 550 Commercial Hot Water Boiler Low Water Cut-Off, 120 VAC, EL1214-P 3/4" NPT Probe
Model: 550P
Qty
$250.00
Ships in 4-7 Business Days
Add To Cart
Tekmar 518 - Thermostat - Non-Programmable - One Stage Heat
Model: 518
Qty
$100.00
Ships in 4-7 Business Days
Add To Cart
tekmar  521 - Thermostat - Programmable - 2H or 1H/1C - Buttons
Model: 521
Qty
$157.00
Ships in 4-7 Business Days
Add To Cart
Caleffi Discal Air Separator with 1/2" FNPT Bottom Thread - 1-1/4" NPT Female Connections
Model: 551007A
Connection Type
Qty
$161.82
Ships in 16-20 Weeks
Add To Cart
Features
View More

Features

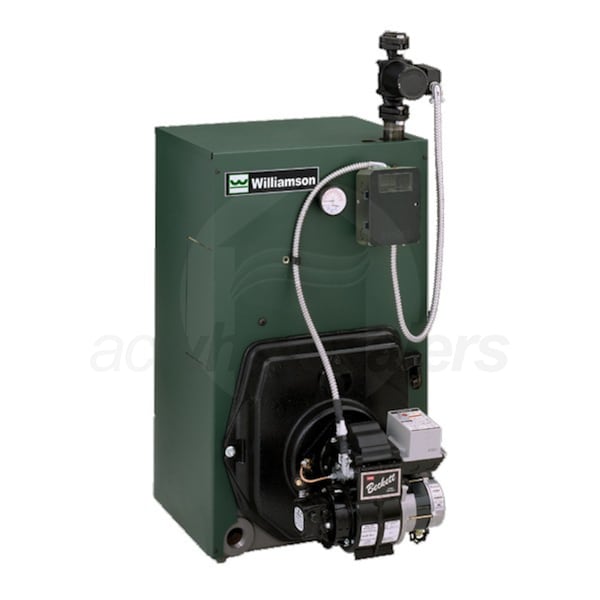

Overview for Williamson-Thermoflo OWT-4-T-S2-W-W

"Uncover warm possibilities" with Williamson-Thermoflo's OWT Oil fired water boiler with tankless. The highly efficient OWT-4-T-S2-W pumps out 145,000 BTUs with a thermal efficiency rating of 85 percent. The OWT is also designed with a solenoid valve, PSC motor, and a solid state igniter to maintain that efficiency. This boiler is equipped with many features, such as a temperature limit control, cast-iron sections with built-in separator, and an insulated heavy-gauge steel jacket. The OWT is also easily serviced with a swing-away burner door, top access cleanout cover, and plug-in wiring harness. Since it is factory tested and comes with a limited lifetime warranty on the heat exchanger, you can be absolutely sure that your investment is reliable and built to last.
  • Factory Tested
  • OWB boilers are factory tested, ensuring reliability and properly functioning equipment.
  • Factory Assembled
  • OWT boilers are factory-assembled meaning that the boiler comes ready for installation. This includes the aluminized flue collector, swing-away burner mounting door, with the refractory blanket and recessed target wall in the combustion chamber.
  • Easy Service
  • With a swing-away burner door, top access cleanout cover, and plug-in wiring harness, servicing the OWB boiler easy.
  • Lifetime Warranty
  • A limited lifetime warranty on the heat exchanger means that you can rest assured that your investment is covered, should there be a problem.
  • Product Includes
  • Taco 007 Circulator Pump
  • Specifications
    View More

    Specifications

    General Information
    Product Line
    OWT
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Heat Exchanger Material
    Cast Iron
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Oil
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Conventional
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Chimney Vent
    DHW Production Learn More
    DHW Production
    DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
    Yes
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Single Stage
    Mount Type
    Floor
    Maximum Altitude
    2000 Feet
    Assembly Type
    Packaged
    Includes Pump
    Yes
    Burner Model
    Sold Separately
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    85 %
    Input Rate
    1.2 GPH
    DOE Heating Capacity Learn More
    DOE Heating Capacity
    Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
    145000 BTU
    Net I=B=R Capacity Learn More
    Net I=B=R Capacity
    I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
    126000 BTU
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Supply Connection
    1 1/2 Inches
    Return Connection
    1 1/2 Inches
    Product Height
    35 5/8 Inches
    Product Width
    20 1/4 Inches
    Product Depth
    16 7/8 Inches
    Product Weight
    660 Pounds
    Shipping Weight
    670 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    3 Years
    Heat Exchanger Warranty
    Lifetime Years
