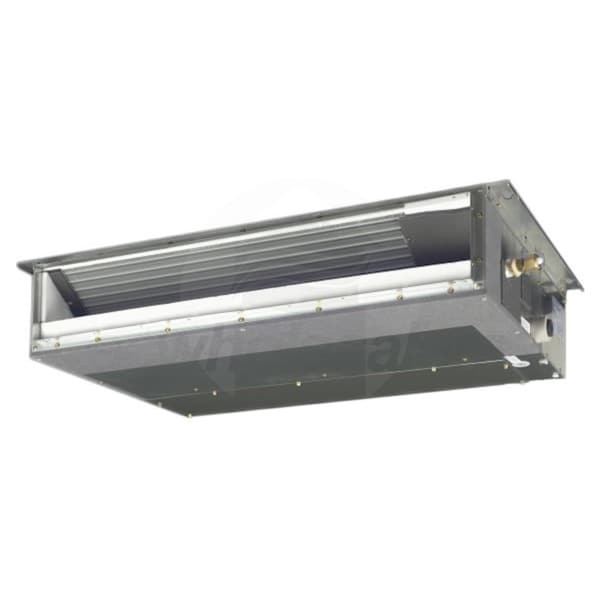

Daikin 24,000 BTU Multi Zone Concealed Ducted Air Handler

Model: CDXS24LVJU Item Number: 26522
Daikin CDXS24LVJU
PREVIOUS
NEXT
Daikin CDXS24LVJU
Enlarge Image
Daikin CDXS24LVJU
Daikin CDXS24LVJU
Watch Video
Daikin CDXS24LVJU
Watch Video
Daikin CDXS24LVJU
Watch Video
Daikin CDXS24LVJU
Watch Video
Daikin CDXS24LVJU
Watch Video
Daikin CDXS24LVJU
Watch Video
View All
Our Price: $1,609.00
synchrony card icon
$269 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships in 2-5 Business Days
Shipping to60601
Factory items ship direct from the manufacturer
Shipping times vary
Daikin 24,000 BTU Multi Zone Concealed Ducted Air Handler
Daikin 24,000 BTU Multi Zone Concealed Ducted Air Handler Model: CDXS24LVJU Item Number: 26522
$1,609.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    75 Pounds Learn More
    75 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split System Components
Capacity (BTU/h)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Daikin CDXS24LVJU

Please Note: Due to the limited availability of this model, these products will be sold in systems only. Should you have any questions please contact our sales center at 866-631-6389 option 1 for alternate options.

Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. This is a CDXS24LVJU concealed duct indoor unit for use in building a multi-zone mini split system. Whisper quiet operation means that the unit will never draw attention to itself, and sleek aesthetics allow the unit to blend into almost any home decoration theme. Daikin indoor units posess powerful energy saving features, which when combined with Daikin's extensive experience with building efficient units provides a cost-conscious solution to any home's heating and cooling needs.
  • Whisper Quiet Operation
  • Daikin ductless units are engineered from the ground up for impressively quiet operation. The solidness of the unit's construction works together with quiet motor operation to make the unit as unobtrusive as possible to its surrounding environment.
  • Inverter Technology Prevents Temperature Fluctuation
  • Daikin's inverter technology works together with the expansion valve to adjust coolant flow rate and compressor speed to match indoor conditions. This results in less dramatic indoor temperature swings, which in turn results in a more comfortable home.
  • Included Wireless Control
  • The included wireless control allows you to control the temperature of your room while never leaving the comfort of your favorite recliner.
  • Built-In Advanced Filtration System
  • Daikin mini splits do more for your home's comfort level than control its temperature. An advanced microbial filtration system is installed in the indoor unit, allowing the mini split to purify your home's air as well as heating or cooling it.
  • Product Compatible With
  • Daikin 2MXS18NMVJU / 2MXL18QMVJU Outdoor Condenser Unit
  • Daikin 3MXS24NMVJU / 3MXL24QMVJU Outdoor Condenser Unit
  • Daikin 4MXS36NMVJU Outdoor Condenser Unit
  • Daikin RMXS48LVJU Outdoor Condenser Unit
  • Product Note
    This product requires a compatible Daikin outdoor condenser and the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Concealed Duct
    Product Line
    MXS
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    24
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    24000 BTU
    Cooling Power Input
    164 Watts
    Maximum Air Flow
    565 CFM
    Minimum Air Flow
    395 CFM
    Heating Power Input
    164 Watts
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    38 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    7 7/8 Inches
    Product Width
    35 7/16 Inches
    Product Depth
    24 7/16 Inches
    Product Weight
    75 Pounds
    Shipping Weight
    85 Pounds
    Certifications
    Country of Origin
    Japan
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
