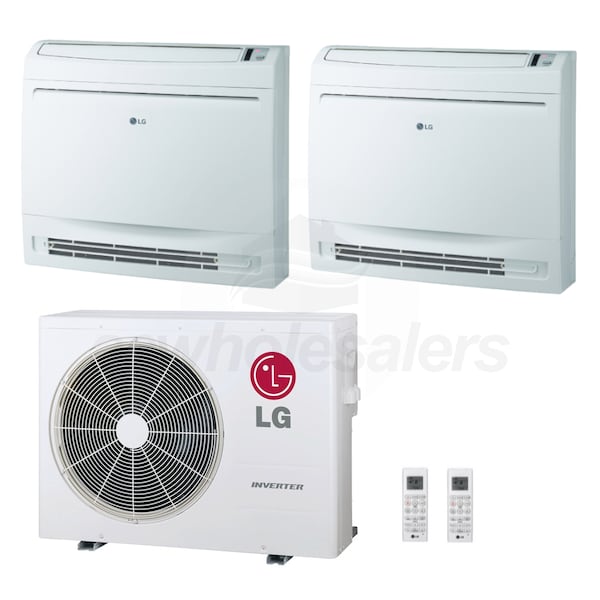

LG Low Wall Console 2-Zone System - 24,000 BTU Outdoor - 12k + 12k Indoor - 22.5 SEER2

Model: L2H24F12120000 Item Number: 106771
LG L2H24F12120000
PREVIOUS
NEXT
LG L2H24F12120000
LG L2H24F12120000
LG L2H24F12120000
Enlarge Image
LG L2H24F12120000
LG L2H24F12120000
LG L2H24F12120000
View All
Originally $3,897.00, you save 5%
Our Price: $3,702.15
synchrony card icon
$65 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
In-Stock
Ships Friday, November 15th
Shipping to60601
LG Low Wall Console 2-Zone System - 24,000 BTU Outdoor - 12k + 12k Indoor - 22.5 SEER2
LG Low Wall Console 2-Zone System - 24,000 BTU Outdoor - 12k + 12k Indoor - 22.5 SEER2 Model: L2H24F12120000 Item Number: 106771
$3,702.15
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    172 Pounds Learn More
    172 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Heat Pump System
Bundle Includes 3 items
  • product image
    (1) LG - 24k BTU - Outdoor Condenser - For 2-3 Zones (LMU243HV)
  • product image
    (2) LG 12,000 BTU Low Wall Console Unit (LQN120HV4)
High Heating Capacity
Select Attribute
Outdoor Unit BTU/h
Select Attribute
Indoor Unit Sizes
Learn More
Indoor Unit Sizes
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (9k + 12k) means the system includes a 9k BTU unit and a 12k BTU unit.
Select Attribute
Outdoor Unit Size
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for LG L2H24F12120000

LG Ductless Air Conditioning Systems offer convenient solutions that are cost-effective, quiet, and attractive. These innovative systems are split into two efficient units. The wall-mounted interior unit is slim, lightweight, and aesthetically pleasing. The larger, Flex Multi-Split systems operate two, three or four interior units that are mounted in separate rooms. Each indoor unit comes with its own remote control, allowing the customer to set the temperature individually in different rooms. These units are connected to a single exterior unit. The interior units are available in a variety of styles, including Art Cool, Standard, Ceiling Cassette, and Ceiling Concealed Duct models. Dual-,Tri- and Quad-Zone are Heat Pump systems.
  • Inverter Technology
  • LG's multi-zone outdoor condensers are designed with powerful, efficient inverter technology. An electronic expansion valve and a variable speed condenser compressor carefully regulate the refrigerant flow, reducing energy consumption.
  • Gold Fin Protection
  • To ensure the reliability and longevity of the LMU243HV's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
  • Quiet Design
  • Thanks to a brushless direct current fan motor, both the outdoor and indoor units in this system produce less mechanical and electrical noise, allowing them to provide comfort that doesn't disrupt your home.
  • Air Flow Options
  • This unit gives you two options for automating air flow. In swing mode, the unit will rotate through all four air flow directions and with the Chaos Wind feature, it cycles both air flow direction and fan speed.
  • Self-Cleaning Coil
  • These low wall console indoor units feature self-cleaning heat exchanger coils that automatically remove dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
  • Jet Temperature Control
  • Getting your Zone Comfortable quickly is no problem thanks to the Jet Cool mode with these indoor units. With the press of a button, your system will operate at maximum output to provide rapid zoned cooling.
  • Improved Air Quality
  • All of LG's low wall console multi-zone mini split indoor units keep your air clean with a washable anti-fungal filter.
  • Hot Start
  • When the hot start function is enabled on a mini split indoor unit, the fan will not engage until the the indoor coil is up to temperature. This prevents the unit from blowing cold air during heating operations.
  • Dehumidify
  • LG's mini split indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Recommended line set sizes for indoor unit connectivity:
  • LQN120HV4: 1/4" x 3/8" Line Set (Qty 2)
  • All LG branch boxes systems require a min of 16.4 feet of line set between the condenser and the branch box, from the branch box to the distribution box and from the distribution box to the indoor unit.
  • Product Note
    Each indoor unit will include any port adapters necessary for multi-zone installation.This product requires the following accessories for installation:Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.Adding these accessories to your order will provide a complete, ready-to-install mini split system.LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 3 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Mini Split Heat Pump System
    General Information
    Type
    Floor Mounted
    Product Line
    Multi F
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    2
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12 + 12
    Outdoor Unit Size
    24000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Cooling Power Input
    1580 Watts
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    14 F
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    22.5
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    12.5
    HSPF2 Learn More
    HSPF2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
    9.4
    Dimensions
    Product Weight
    172 Pounds
    Shipping Weight
    192 Pounds
    Certifications
    Energy Star Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    208131886
    General Information
    Type
    Outdoor Condenser
    Product Line
    Multi F
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    3
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    24000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    54 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    20 Amps
    Dimensions
    Maximum Line Length
    230 Feet
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Product Height
    25 29/48 Inches
    Product Width
    34 1/4 Inches
    Product Depth
    11 25/48 Inches
    Product Weight
    101.4 Pounds
    Shipping Weight
    110.2 Pounds
    Certifications
    UL Listed
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Floor Mounted
    Product Line
    Multi F
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Motor Type
    Digital Controlled
    Installation Location
    Indoor
    Electric Heat
    Yes
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    13000 BTU
    Heating Capacity
    15000 BTU
    Maximum Air Flow
    353 CFM
    Minimum Air Flow
    244 CFM
    Minimum Sound Level
    27 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    39 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    23 5/8 Inches
    Product Width
    27 9/16 Inches
    Product Depth
    8 13/48 Inches
    Product Weight
    36 Pounds
    Shipping Weight
    42 Pounds
    Liquid Valve Connection Size
    1/4 Inch
    Suction Valve Connection Size
    3/8 Inch
    Certifications
    UL Listed
    Yes
    Energy Star Listed
    Yes
    CSA Listed
    Yes
    AHRI Certified
    Yes
    Overview
    Product Category
    Mini Split System Components
