LG Low Wall Console 5-Zone LGRED° Heat System System - 48,000 BTU Outdoor - 9k + 9k + 9k + 12k + 15k Indoor - 20.5 SEER2
New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
394 Pounds 394 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Product Category
Mini Split Heat Pump System
View More

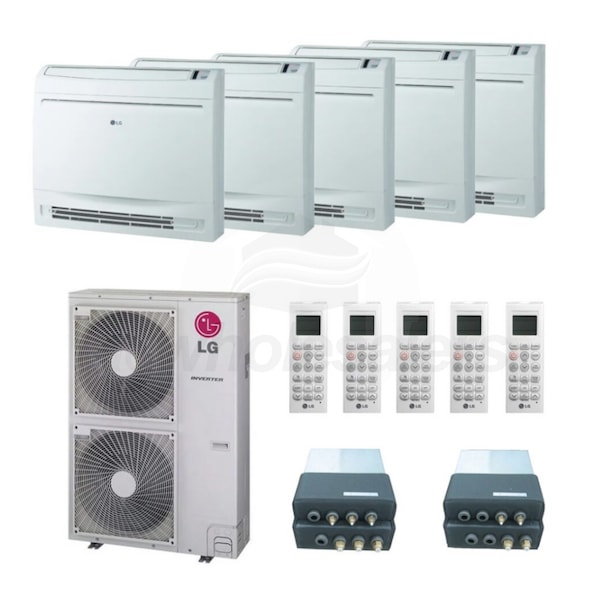

Bundle Includes 9 items
(1) LG - 48k BTU - LGRED° Heat Outdoor Condenser - For 2-8 Zones (LMU480HHV)

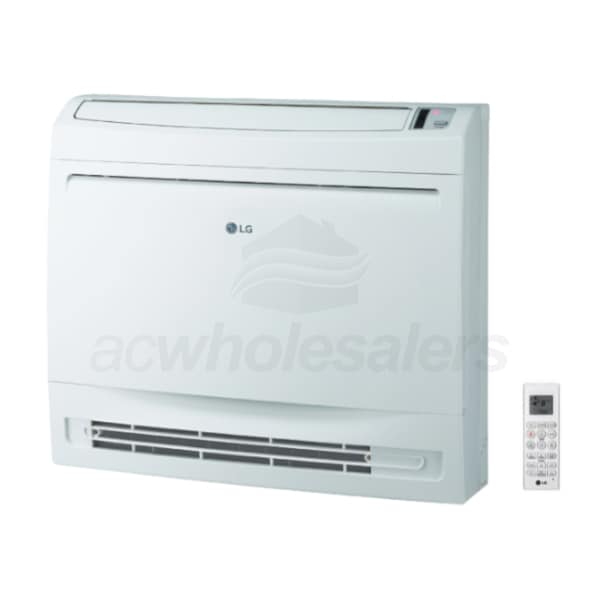

(1) LG 15,000 BTU Low Wall Console Unit (LMQN150HV)
(1) LG 12,000 BTU Low Wall Console Unit (LQN120HV4)
View Full Bundle
High Heating Capacity
Outdoor Unit BTU/h
Indoor Unit Sizes
Indoor Unit SizesMini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (9k + 12k) means the system includes a 9k BTU unit and a 12k BTU unit.
Outdoor Unit Size
+Share This Product
Recommended Accessories
Required AccessoriesAdd All Required
Installation Accessories
Features & Bundle Details
Features & Bundle Details
Overview for LG L5L48F0909091215
LG's devotion to providing efficient ductless solutions can be seen across the Multi F line. This low wall console ductless heat pump system pairs a powerful LMU480HHV outdoor condenser with LG's Standard Indoor line. An easy installation process and low sound levels mean that this system provides temperature control that doesn't disrupt your home. The well-rounded indoor units feature several convenient operation modes, and each includes a wireless remote controller, making it easy for you to enjoy zoned comfort.
Integrated Base Pan Heater
Base pan heaters come factory installed on all LGRED° outdoor condensers in order to mitigate the risk of damage caused by freezing condensate.
Inverter Technology
LG's multi-zone outdoor condensers are designed with powerful, efficient inverter technology. An electronic expansion valve and a variable speed condenser compressor carefully regulate the refrigerant flow, reducing energy consumption.
Gold Fin Protection
To ensure the reliability and longevity of the LMU480HHV's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
Quiet Design
Thanks to a brushless direct current fan motor, both the outdoor and indoor units in this system produce less mechanical and electrical noise, allowing them to provide comfort that doesn't disrupt your home.
Air Flow Options
This unit gives you two options for automating air flow. In swing mode, the unit will rotate through all four air flow directions and with the Chaos Wind feature, it cycles both air flow direction and fan speed.
Self-Cleaning Coil
These low wall console indoor units feature self-cleaning heat exchanger coils that automatically remove dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
Jet Temperature Control
Getting your Zone Comfortable quickly is no problem thanks to the Jet Cool mode with these indoor units. With the press of a button, your system will operate at maximum output to provide rapid zoned cooling.
Improved Air Quality
All of LG's low wall console multi-zone mini split indoor units keep your air clean with a washable anti-fungal filter.
Hot Start
When the hot start function is enabled on a mini split indoor unit, the fan will not engage until the indoor coil is up to temperature. This prevents the unit from blowing cold air during heating operations.
Dehumidify
LG's mini split indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
Recommended line set sizes for indoor unit connectivity:
LQN090HV4: 1/4" x 3/8" Line Set (Qty 3)
LQN120HV4: 1/4" x 3/8" Line Set
LMQN150HV: 1/4" x 1/2" Line Set
A branch box with a 3/8" x 3/4" line set connection is also required. Additional branch boxes and line sets may be required based on your configuration.
All LG branch boxes systems require a min of 16.4 feet of line set between the condenser and the branch box, from the branch box to the distribution box and from the distribution box to the indoor unit.
All LG branch boxes systems require a min of 16.4 feet of line set between the condenser and the branch box, from the branch box to the distribution box and from the distribution box to the indoor unit.
Product Note
Each indoor unit will include any port adapters necessary for multi-zone installation.This product requires the following accessories for installation:Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.Branch Box - An LG branch box is required to connect this condenser to LG mini split indoor units.Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.Adding these accessories to your order will provide a complete, ready-to-install mini split system.LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Number of Zones Number of ZonesA zone is a room or area within a building that has its own temperature control.
5
Refrigerant Type
R-410A
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9 + 9 + 9 + 12 + 15
Outdoor Unit Size
48000 BTU
DOE Regional Compliance DOE Regional ComplianceIn 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide
Performance
Cooling Capacity
48000 BTU
Heating Capacity
52500 BTU
Cooling Power Input
3840 Watts
Heating Power Input
4320 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Minimum Outdoor Temperature for HeatingThis is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
-13 F
Minimum Outdoor Temperature for Cooling
14 F
SEER2 SEER2The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
20.5
EER2 EER2The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
13.1
HSPF2 HSPF2The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
10.5
Dimensions
Product Weight
394 Pounds
Shipping Weight
446 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
206717002
General Information
Type
Outdoor Condenser
Product Line
LGRED Heat
Product Category
Mini Split System Components
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Maximum Number of Zones
8
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Branch Box Required Branch Box RequiredBy making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units.
Yes
Base Pan Heater Included
Yes
Performance
Cooling BTU
48000
Cooling Power Input
3840 Watts
Heating Power Input
3620 Watts
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
56 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Minimum Outdoor Temperature for HeatingThis is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
32.7 Amps
Recommended Breaker Size
40 Amps
Dimensions
Maximum Line Length
475.7 Feet
Gas Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Depth
13 Inches
Product Weight
218 Pounds
Shipping Weight
243 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Compressor Warranty
7 Years
Overview
Product Category
Mini Split System Components
General Information
Type
Floor Mounted
Product Line
Multi F
Product Category
Mini Split System Components
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
15
Motor Type
Digital Controlled
Installation Location
Indoor
Electric Heat
Yes
Performance
Cooling BTU
15000
Cooling Capacity
16000 BTU
Heating Capacity
17000 BTU
Maximum Air Flow
388 CFM
Minimum Air Flow
254 CFM
Minimum Sound Level
35 dB
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
44 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
23 5/8 Inches
Product Width
27 9/16 Inches
Product Depth
8 13/48 Inches
Product Weight
36 Pounds
Shipping Weight
42 Pounds
Liquid Valve Connection Size
1/4 Inch
Suction Valve Connection Size
1/2 Inch
Certifications
UL Listed
Yes
Energy Star Listed
Yes
CSA Listed
Yes
AHRI Certified
Yes
Overview
Product Category
Mini Split System Components
General Information
Type
Floor Mounted
Product Line
Multi F
Product Category
Mini Split System Components
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Motor Type
Digital Controlled
Installation Location
Indoor
Electric Heat
Yes
Performance
Cooling BTU
12000
Cooling Capacity
13000 BTU
Heating Capacity
15000 BTU
Maximum Air Flow
353 CFM
Minimum Air Flow
244 CFM
Minimum Sound Level
27 dB
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
39 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
23 5/8 Inches
Product Width
27 9/16 Inches
Product Depth
8 13/48 Inches
Product Weight
36 Pounds
Shipping Weight
42 Pounds
Liquid Valve Connection Size
1/4 Inch
Suction Valve Connection Size
3/8 Inch
Certifications
UL Listed
Yes
Energy Star Listed
Yes
CSA Listed
Yes
AHRI Certified
Yes
Overview
Product Category
Mini Split System Components
General Information
Type
Floor Mounted
Product Line
Multi F
Product Category
Mini Split System Components
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Motor Type
Digital Controlled
Installation Location
Indoor
Electric Heat
Yes
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Heating Capacity
11000 BTU
Maximum Air Flow
304 CFM
Minimum Air Flow
177 CFM
Minimum Sound Level
27 dB
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
38 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
23 5/8 Inches
Product Width
27 9/16 Inches
Product Depth
8 13/48 Inches
Product Weight
36 Pounds
Shipping Weight
42 Pounds
Liquid Valve Connection Size
1/4 Inch
Suction Valve Connection Size
3/8 Inch
Certifications
UL Listed
Yes
Energy Star Listed
Yes
CSA Listed
Yes
AHRI Certified
Yes
Overview
Product Category
Mini Split System Components
General Information
Type
Branch Box
Product Line
Multi F
Product Category
Mini Split Accessories
Ports Quantity
3
Performance
Maximum Port Capacity
24000 BTU
Maximum Total Port Capacity
72000 BTU
Electrical Data
Power Consumption
24 Watts
Phase
1
Frequency
60 Hz
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Product Height
5 11/12 Inches
Product Width
9 41/48 Inches
Product Depth
11 13/16 Inches
Product Weight
15 Pounds
Shipping Weight
17 Pounds
Certifications
Country of Origin
Korea
Overview
Product Category
Mini Split Accessories
General Information
Type
Branch Box
Product Line
Multi F
Product Category
Mini Split Accessories
Ports Quantity
2
Performance
Maximum Port Capacity
24000 BTU
Maximum Total Port Capacity
48000 BTU
Electrical Data
Power Consumption
16 Watts
Phase
1
Frequency
60 Hz
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Product Height
5 11/12 Inches
Product Width
9 41/48 Inches
Product Depth
11 13/16 Inches
Product Weight
13 Pounds
Shipping Weight
15 Pounds
Certifications
Country of Origin
Korea
Overview
Product Category
Mini Split Accessories
General Information
Type
Y-Branch
Product Line
Multi F
Product Category
Mini Split Accessories
Material
Copper
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Line Set A Liquid Connection
3/8 Inch
Line Set A Gas Connection
3/4 Inch
Line Set B Liquid Connection
3/8 Inch
Line Set B Gas Connection
3/4 Inch
Product Height
3 1/4 Inches
Product Width
13 19/24 Inches
Product Weight
2 Pounds
Certifications
Country of Origin
Korea
Overview
Product Category
Mini Split Accessories
Reviews
Reviews
Do You Own This Product?
Give us your opinion on this product and help any future buyer's make an informed decision.
+Thank You For Submitting Your QuestionYour submission has been sent successfully. Please give our product specialists up to two business days to respond.
Continue Shopping
×
LG Low Wall Console 5-Zone LGRED° Heat System System - 48,000 BTU Outdoor - 9k + 9k + 9k + 12k + 15k Indoor - 20.5 SEER2
