LG Low Wall Console 5-Zone LGRED° Heat System System - 48,000 BTU Outdoor - 9k + 12k + 12k + 12k + 15k Indoor - 20.5 SEER2

Model: L5L48F0912121215 Item Number: 118038
LG L5L48F0912121215
PREVIOUS
NEXT
LG L5L48F0912121215
LG L5L48F0912121215
LG L5L48F0912121215
LG L5L48F0912121215
LG L5L48F0912121215
LG L5L48F0912121215
Enlarge Image
LG L5L48F0912121215
LG L5L48F0912121215
LG L5L48F0912121215
LG L5L48F0912121215
LG L5L48F0912121215
LG L5L48F0912121215
View All
Originally $9,742.00, you save 5%
Our Price: $9,254.90
synchrony card icon
$116 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Backordered
Estimated Availability December 18, 2024
Shipping to60601
LG Low Wall Console 5-Zone LGRED° Heat System System - 48,000 BTU Outdoor - 9k + 12k + 12k + 12k + 15k Indoor - 20.5 SEER2
LG Low Wall Console 5-Zone LGRED° Heat System System - 48,000 BTU Outdoor - 9k + 12k + 12k + 12k + 15k Indoor - 20.5 SEER2 Model: L5L48F0912121215 Item Number: 118038
$9,254.90
Backordered
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    394 Pounds Learn More
    394 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Heat Pump System

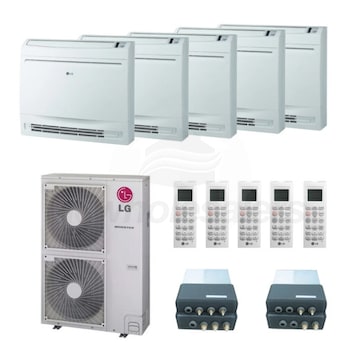

Bundle Includes 9 items
  • product image
    (1) LG - 48k BTU - LGRED° Heat Outdoor Condenser - For 2-8 Zones (LMU480HHV)
  • product image
    (1) LG 15,000 BTU Low Wall Console Unit (LMQN150HV)
  • product image
    (3) LG 12,000 BTU Low Wall Console Unit (LQN120HV4)
High Heating Capacity
Select Attribute
Outdoor Unit BTU/h
Select Attribute
Indoor Unit Sizes
Learn More
Indoor Unit Sizes
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (9k + 12k) means the system includes a 9k BTU unit and a 12k BTU unit.
Select Attribute
Outdoor Unit Size
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for LG L5L48F0912121215

LG's devotion to providing efficient ductless solutions can be seen across the Multi F line. This low wall console ductless heat pump system pairs a powerful LMU480HHV outdoor condenser with LG's Standard Indoor line. An easy installation process and low sound levels mean that this system provides temperature control that doesn't disrupt your home. The well-rounded indoor units feature several convenient operation modes, and each includes a wireless remote controller, making it easy for you to enjoy zoned comfort.
  • Integrated Base Pan Heater
  • Base pan heaters come factory installed on all LGRED° outdoor condensers in order to mitigate the risk of damage caused by freezing condensate.
  • Inverter Technology
  • LG's multi-zone outdoor condensers are designed with powerful, efficient inverter technology. An electronic expansion valve and a variable speed condenser compressor carefully regulate the refrigerant flow, reducing energy consumption.
  • Gold Fin Protection
  • To ensure the reliability and longevity of the LMU480HHV's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
  • Quiet Design
  • Thanks to a brushless direct current fan motor, both the outdoor and indoor units in this system produce less mechanical and electrical noise, allowing them to provide comfort that doesn't disrupt your home.
  • Air Flow Options
  • This unit gives you two options for automating air flow. In swing mode, the unit will rotate through all four air flow directions and with the Chaos Wind feature, it cycles both air flow direction and fan speed.
  • Self-Cleaning Coil
  • These low wall console indoor units feature self-cleaning heat exchanger coils that automatically remove dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
  • Jet Temperature Control
  • Getting your Zone Comfortable quickly is no problem thanks to the Jet Cool mode with these indoor units. With the press of a button, your system will operate at maximum output to provide rapid zoned cooling.
  • Improved Air Quality
  • All of LG's low wall console multi-zone mini split indoor units keep your air clean with a washable anti-fungal filter.
  • Hot Start
  • When the hot start function is enabled on a mini split indoor unit, the fan will not engage until the indoor coil is up to temperature. This prevents the unit from blowing cold air during heating operations.
  • Dehumidify
  • LG's mini split indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Recommended line set sizes for indoor unit connectivity:
  • LQN090HV4: 1/4" x 3/8" Line Set
  • LQN120HV4: 1/4" x 3/8" Line Set (Qty 3)
  • LMQN150HV: 1/4" x 1/2" Line Set
  • A branch box with a 3/8" x 3/4" line set connection is also required. Additional branch boxes and line sets may be required based on your configuration.
  • All LG branch boxes systems require a min of 16.4 feet of line set between the condenser and the branch box, from the branch box to the distribution box and from the distribution box to the indoor unit.
  • All LG branch boxes systems require a min of 16.4 feet of line set between the condenser and the branch box, from the branch box to the distribution box and from the distribution box to the indoor unit.
  • Product Note
    Each indoor unit will include any port adapters necessary for multi-zone installation.This product requires the following accessories for installation:Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.Branch Box - An LG branch box is required to connect this condenser to LG mini split indoor units.Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.Adding these accessories to your order will provide a complete, ready-to-install mini split system.LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 9 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Mini Split Heat Pump System
    General Information
    Type
    Floor Mounted
    Product Line
    LGRED Heat
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    5
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9 + 12 + 12 + 12 + 15
    Outdoor Unit Size
    48000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Cooling Capacity
    48000 BTU
    Heating Capacity
    52500 BTU
    Cooling Power Input
    3840 Watts
    Heating Power Input
    4320 Watts
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    14 F
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    20.5
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    13.1
    HSPF2 Learn More
    HSPF2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
    10.5
    Dimensions
    Product Weight
    394 Pounds
    Shipping Weight
    446 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    206717002
    General Information
    Type
    Outdoor Condenser
    Product Line
    LGRED Heat
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    8
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Branch Box Required Learn More
    Branch Box Required
    By making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units.
    Yes
    Base Pan Heater Included
    Yes
    Performance
    Cooling BTU
    48000
    Cooling Power Input
    3840 Watts
    Heating Power Input
    3620 Watts
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    56 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    32.7 Amps
    Recommended Breaker Size
    40 Amps
    Dimensions
    Maximum Line Length
    475.7 Feet
    Gas Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Depth
    13 Inches
    Product Weight
    218 Pounds
    Shipping Weight
    243 Pounds
    Certifications
    ETL Listed
    Yes
    UL Listed
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Floor Mounted
    Product Line
    Multi F
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    15
    Motor Type
    Digital Controlled
    Installation Location
    Indoor
    Electric Heat
    Yes
    Performance
    Cooling BTU
    15000
    Cooling Capacity
    16000 BTU
    Heating Capacity
    17000 BTU
    Maximum Air Flow
    388 CFM
    Minimum Air Flow
    254 CFM
    Minimum Sound Level
    35 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    44 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    23 5/8 Inches
    Product Width
    27 9/16 Inches
    Product Depth
    8 13/48 Inches
    Product Weight
    36 Pounds
    Shipping Weight
    42 Pounds
    Liquid Valve Connection Size
    1/4 Inch
    Suction Valve Connection Size
    1/2 Inch
    Certifications
    UL Listed
    Yes
    Energy Star Listed
    Yes
    CSA Listed
    Yes
    AHRI Certified
    Yes
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Floor Mounted
    Product Line
    Multi F
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Motor Type
    Digital Controlled
    Installation Location
    Indoor
    Electric Heat
    Yes
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    13000 BTU
    Heating Capacity
    15000 BTU
    Maximum Air Flow
    353 CFM
    Minimum Air Flow
    244 CFM
    Minimum Sound Level
    27 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    39 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    23 5/8 Inches
    Product Width
    27 9/16 Inches
    Product Depth
    8 13/48 Inches
    Product Weight
    36 Pounds
    Shipping Weight
    42 Pounds
    Liquid Valve Connection Size
    1/4 Inch
    Suction Valve Connection Size
    3/8 Inch
    Certifications
    UL Listed
    Yes
    Energy Star Listed
    Yes
    CSA Listed
    Yes
    AHRI Certified
    Yes
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Floor Mounted
    Product Line
    Multi F
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9
    Motor Type
    Digital Controlled
    Installation Location
    Indoor
    Electric Heat
    Yes
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    9000 BTU
    Heating Capacity
    11000 BTU
    Maximum Air Flow
    304 CFM
    Minimum Air Flow
    177 CFM
    Minimum Sound Level
    27 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    38 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    23 5/8 Inches
    Product Width
    27 9/16 Inches
    Product Depth
    8 13/48 Inches
    Product Weight
    36 Pounds
    Shipping Weight
    42 Pounds
    Liquid Valve Connection Size
    1/4 Inch
    Suction Valve Connection Size
    3/8 Inch
    Certifications
    UL Listed
    Yes
    Energy Star Listed
    Yes
    CSA Listed
    Yes
    AHRI Certified
    Yes
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Branch Box
    Product Line
    Multi F
    Product Category
    Mini Split Accessories
    Ports Quantity
    3
    Performance
    Maximum Port Capacity
    24000 BTU
    Maximum Total Port Capacity
    72000 BTU
    Electrical Data
    Power Consumption
    24 Watts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Product Height
    5 11/12 Inches
    Product Width
    9 41/48 Inches
    Product Depth
    11 13/16 Inches
    Product Weight
    15 Pounds
    Shipping Weight
    17 Pounds
    Certifications
    Country of Origin
    Korea
    Overview
    Product Category
    Mini Split Accessories
    General Information
    Type
    Branch Box
    Product Line
    Multi F
    Product Category
    Mini Split Accessories
    Ports Quantity
    2
    Performance
    Maximum Port Capacity
    24000 BTU
    Maximum Total Port Capacity
    48000 BTU
    Electrical Data
    Power Consumption
    16 Watts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Product Height
    5 11/12 Inches
    Product Width
    9 41/48 Inches
    Product Depth
    11 13/16 Inches
    Product Weight
    13 Pounds
    Shipping Weight
    15 Pounds
    Certifications
    Country of Origin
    Korea
    Overview
    Product Category
    Mini Split Accessories
    General Information
    Type
    Y-Branch
    Product Line
    Multi F
    Product Category
    Mini Split Accessories
    Material
    Copper
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Line Set A Liquid Connection
    3/8 Inch
    Line Set A Gas Connection
    3/4 Inch
    Line Set B Liquid Connection
    3/8 Inch
    Line Set B Gas Connection
    3/4 Inch
    Product Height
    3 1/4 Inches
    Product Width
    13 19/24 Inches
    Product Weight
    2 Pounds
    Certifications
    Country of Origin
    Korea
    Overview
    Product Category
    Mini Split Accessories
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

    Manuals
    View More

    Share
    ×
    LG Low Wall Console 5-Zone LGRED° Heat System System - 48,000 BTU Outdoor - 9k + 12k + 12k + 12k + 15k Indoor - 20.5 SEER2
    LG L5L48F0912121215
    Loading
    LG L5L48F0912121215
    LG L5L48F0912121215
    LG L5L48F0912121215
    LG L5L48F0912121215
    LG L5L48F0912121215
    LG L5L48F0912121215
    ×
    Customer Review Images
    Loading
    Scroll Up ArrowTo Top
