LG - 12k Cooling + Heating - Low Wall Console - Air Conditioning System - 20.8 SEER2

Model: LQ120HV Item Number: 149220
LG LQ120HV
PREVIOUS
NEXT
LG LQ120HV
LG LQ120HV
LG LQ120HV
Enlarge Image
LG LQ120HV
LG LQ120HV
LG LQ120HV
View All
Originally $2,174.65, you save 5%
Our Price: $2,065.92
synchrony card icon
$345 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 7-14 Business Days
LG - 12k Cooling + Heating - Low Wall Console - Air Conditioning System - 20.8 SEER2
LG - 12k Cooling + Heating - Low Wall Console - Air Conditioning System - 20.8 SEER2 Model: LQ120HV Item Number: 149220
$2,065.92
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    110.4 Pounds Learn More
    110.4 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Floor Mounted
    Product Category
    Mini Split Heat Pump System
Bundle Includes 2 items
  • product image

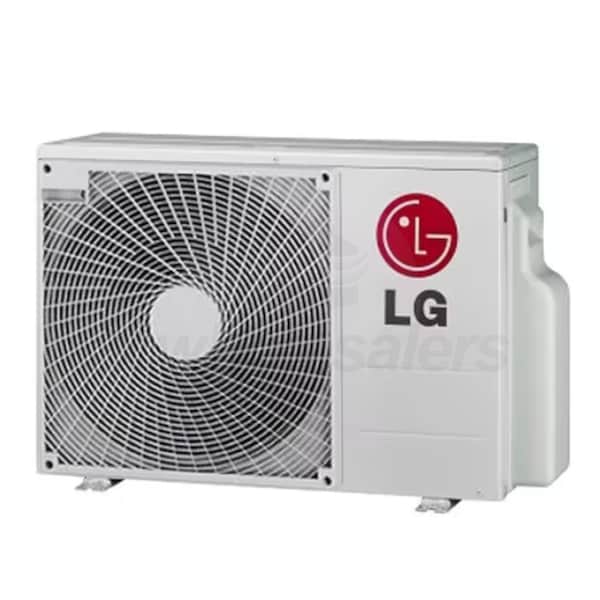

    (1) LG - 12k BTU - Outdoor Condenser - Single Zone Only (LUU120HV)
  • product image
    (1) LG 12,000 BTU Low Wall Console Unit (LQN120HV4)
System BTU/h
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for LG LQ120HV

LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. LG's Low Wall Console is perfect for areas where you don't have the ceiling height or wall space to allow for a wall mounted unit. This ductless heat pump system features an easy installation process, a full-featured wireless handheld remote controller, and several operation modes aimed at increasing power and efficiency. Over the years, LG strives to meet the demand for high quality air conditioning solutions with greater energy efficiency, helping the environment while also reducing electricity costs for consumers.
  • Inverter Technology
  • An electronic expansion valve and a variable speed condenser compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures without overshooting or short-cycling.
  • Gold Fin Protection
  • To ensure the reliability and longevity of the condenser's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
  • Quiet Design
  • LG uses advanced components to ensure that their systems are as quiet as possible. In the outdoor condenser, a twin rotary compressor reduces vibration to limit noise while both the outdoor and indoor units utilize brushless fan motors.
  • Jet Cool
  • This system features a Jet Cool operation mode for rapid cooling. In this mode, the indoor unit observes a set point of 64 degrees Fahrenheit and the fan operates at maximum speed for 30 minutes to quickly cool your zone.
  • Sleep Mode
  • With the sleep mode and timer functions, you can set the indoor units to save energy at night. Sleep mode will incrementally increase temperature for an hour before the timer function automatically deactivates the unit.
  • Improved Air Quality
  • The low wall consoles feature an anti-fungal filter to keep your air clean. This filter captures contaminants like dust and bacteria and is washable to ensure long term air quality.
  • Product Note
    This product requires the following accessories for installation:Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
    Bundle Includes 2 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Type
    Floor Mounted
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Outdoor Unit Size
    12000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    1/4" x 3/8"
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    10200 BTU
    Heating Capacity
    13000 BTU
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    0 F
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    20.8
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    12.6
    HSPF2 Learn More
    HSPF2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
    10.2
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    15 Amps
    Dimensions
    Product Weight
    110.4 Pounds
    Shipping Weight
    122.5 Pounds
    Certifications
    Energy Star Listed
    Yes
    CSA Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    211234503
    General Information
    Type
    Outdoor Condenser
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    1
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    12000
    Heating BTU
    14000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    52 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    0 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    12.3 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Maximum Line Length
    66 Feet
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    21 23/48 Inches
    Product Width
    33 47/48 Inches
    Product Depth
    13 43/48 Inches
    Product Weight
    75 Pounds
    Shipping Weight
    80 Pounds
    Certifications
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Floor Mounted
    Product Line
    Multi F
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Motor Type
    Digital Controlled
    Installation Location
    Indoor
    Electric Heat
    Yes
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    13000 BTU
    Heating Capacity
    15000 BTU
    Maximum Air Flow
    353 CFM
    Minimum Air Flow
    244 CFM
    Minimum Sound Level
    27 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    39 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    23 5/8 Inches
    Product Width
    27 9/16 Inches
    Product Depth
    8 13/48 Inches
    Product Weight
    36 Pounds
    Shipping Weight
    42 Pounds
    Liquid Valve Connection Size
    1/4 Inch
    Suction Valve Connection Size
    3/8 Inch
    Certifications
    UL Listed
    Yes
    Energy Star Listed
    Yes
    CSA Listed
    Yes
    AHRI Certified
    Yes
    Overview
    Product Category
    Mini Split System Components
