Mitsubishi - 36k BTU Cooling Only - P-Series Concealed Duct Air Conditioning System - 18.5 SEER2

Model: PUY-A36NKA7 PEAD-A36AA8 Item Number: 152862

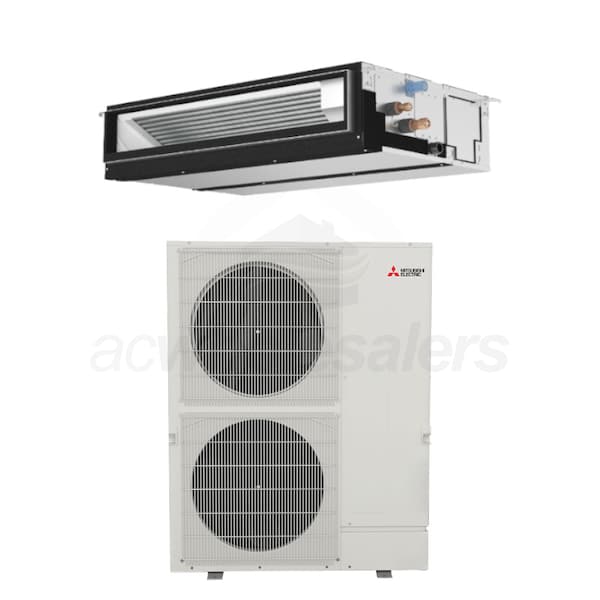

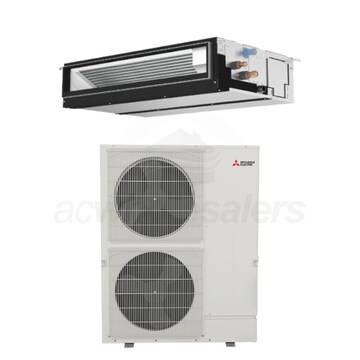

Mitsubishi PUY-A36NKA7 PEAD-A36AA8
PREVIOUS
NEXT
Mitsubishi PUY-A36NKA7 PEAD-A36AA8
Mitsubishi PUY-A36NKA7 PEAD-A36AA8
Mitsubishi PUY-A36NKA7 PEAD-A36AA8
Enlarge Image
Mitsubishi PUY-A36NKA7 PEAD-A36AA8
Mitsubishi PUY-A36NKA7 PEAD-A36AA8
Mitsubishi PUY-A36NKA7 PEAD-A36AA8
View All
Originally $6,477.00, you save 11%
Our Price: $5,783.14
synchrony card icon
$73 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Only 1 In-Stock
Ships Monday, November 25th
Shipping to60601
Mitsubishi - 36k BTU Cooling Only - P-Series Concealed Duct Air Conditioning System - 18.5 SEER2
Mitsubishi - 36k BTU Cooling Only - P-Series Concealed Duct Air Conditioning System - 18.5 SEER2 Model: PUY-A36NKA7 PEAD-A36AA8 Item Number: 152862
$5,783.14
Only 1 In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    295 Pounds Learn More
    295 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Concealed Duct
    Product Line
    P-Series
Bundle Includes 2 items
  • product image
    (1) Mitsubishi - 36k BTU - P-Series Cooling Only Outdoor Condenser - Single Zone Only (PUY-A36NKA7)
  • product image
    (1) Mitsubishi - 36k BTU - P-Series Concealed Duct Unit - For Multi or Single-Zone (PEAD-A36AA8)
System BTU/h
Select Attribute
Operating Mode
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi PUY-A36NKA7 PEAD-A36AA8

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The PUY-A36NKA7 PEAD-A36AA8 is a single zone air conditioner mini split system designed to bring unobtrusive cooling to any room in a large home or business while taking advantage of existing ductwork. A concealed duct indoor unit is paired with an outdoor condenser that uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. With the PEAD-A36AA8, a small air register is the only evidence that a powerful and efficient mini split is servicing your room. As part of Mitsubishi's commercial P-Series, the condenser is constructed with industrial-grade materials to ensure consistent performance in the harshest conditions, making this system ideal for critical applications that require constant conditioning.
  • Precision Temperature Control Technology
  • The outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. These components improve temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow.
  • Dehumidification
  • When the indoor unit is run in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Kumo Cloud Compatible
  • Control every zone in your home from the palm of your hand. The Kumo Cloud App allows easy access and control with any smartphone or internet browser.
  • Condensate Removal System
  • The PEAD-A36AA8 contains an internal drain mechanism capable of lifting condensate 27-9/16". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
  • Product Note
    This product requires the following accessories for installation:Thermostat - Mitsubishi P-Series mini splits do not include a thermostat for system control. Recommended thermostats can be found under the "Accessories" tab.Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit.
    Bundle Includes 2 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Type
    Concealed Duct
    Product Line
    P-Series
    Product Category
    Mini Split Cooling Only System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling Only
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    36
    Outdoor Unit Size
    36000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    3/8" x 5/8"
    Performance
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    Moisture Removal
    8.1 Pints/Hour
    Cooling Power Input
    3000 Watts
    Minimum Outdoor Temperature for Cooling
    23 F
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    18.5
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    10.0
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    31 Amps
    Dimensions
    Product Weight
    295 Pounds
    Shipping Weight
    343 Pounds
    Certifications
    Energy Star Listed
    No
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    201754541
    General Information
    Type
    Outdoor Condenser
    Product Line
    P-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling Only
    Maximum Number of Zones
    1
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    31 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    25 Amps
    Recommended Breaker Size
    30 Amps
    Dimensions
    Maximum Line Length
    225 Feet
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    52 3/4 Inches
    Product Width
    41 5/24 Inches
    Product Depth
    14 Inches
    Product Weight
    211 Pounds
    Shipping Weight
    243 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Concealed Duct
    Product Line
    P-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    36
    Installation Location
    Indoor
    Performance
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    Heating BTU
    38000
    Maximum Air Flow
    1201 CFM
    Minimum Air Flow
    847 CFM
    Minimum Sound Level
    35 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    42 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    9 7/8 Inches
    Product Width
    55 1/8 Inches
    Product Depth
    28 19/24 Inches
    Product Weight
    84 Pounds
    Shipping Weight
    100 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
